Views: 0 Author: Site Editor Publish Time: 2026-10-07 Origin: Site
Are flooded parking lots ruining your newly laid asphalt? Say goodbye to flooding and the costly liabilities that standing water creates almost overnight. Poor stormwater drainage actively destroys expensive pavements from the subbase up. Custom concrete channels serve as the frontline defense to prevent this structural damage effectively.
Building a durable stormwater network requires high-quality molds. Engineers know this truth: water always wins if you give it a chance. We examine materials, installation steps, and the engineering principles behind effective water management. Your next paving project must stand the test of time.
Customization and Strength: Utilizing cast-in-place methods provides superior load-bearing capacity and seamless integration compared to factory-made alternatives. This makes it the ideal solution for heavy-traffic zones.
Material Matters: Choosing the right mold material dictates project speed and overall labor costs. It also determines potential reusability on future job sites.
Traffic Considerations: Drainage designs must be precisely tailored to specific load requirements. Light commercial retail specifications differ drastically from heavy industrial logistics hubs.
Precision is Key: Proper installation techniques guarantee efficient water flow. Laser-leveling the initial trench and applying high-quality release agents prevent long-term structural failure.
Civil engineering is undergoing a massive shift regarding water management. Extreme weather events are no longer rare anomalies. Property developers are aggressively abandoning bare-minimum compliance. They now demand over-engineered stormwater management systems capable of handling sudden and massive deluges. Urban planners recognize that traditional drainage simply cannot keep up with the increased runoff volumes generated by large impermeable asphalt surfaces.
Consequently, the paving and construction industry is moving rapidly toward robust, high-capacity cast-in-place systems. This structural upgrade ensures commercial parking facilities remain functional and safe during severe weather events. Upgrading the underlying drainage infrastructure is now a mandatory step in future-proofing real estate investments.
A parking lot represents a massive infrastructure investment. Its longevity relies entirely on efficient stormwater management. Water must be directed away instantly when precipitation strikes impermeable asphalt surfaces. High-quality concrete channel formwork becomes indispensable here. It acts as the structural blueprint. The molds create the exact long-lasting drainage pathways required by site engineers.
Standing water is the primary enemy of any paved surface. Moisture pools and slowly seeps into microscopic asphalt cracks. Trapped water expands and contracts during harsh freeze-thaw cycles. This literally tears the pavement apart from the inside out. Potholes, alligator cracking, and severe subbase erosion follow shortly after.
Properly constructed molds dictate the exact slope and volumetric capacity required for rapid water evacuation. Contractors capture and divert surface runoff long before it compromises the asphalt by shaping a trench that perfectly matches engineered hydrological calculations.
Trench drains act as structural beams that must withstand immense dynamic forces. Delivery trucks rolling over grates send massive shockwaves into the underlying concrete. Robust molds ensure the poured concrete maintains exact wall thickness and geometric integrity. The formwork securely holds the heavy wet mix and internal steel reinforcement in place during the curing process. This prevents walls from collapsing inward under the relentless pressure of commercial vehicles.
Contractors face a pivotal choice when designing a stormwater system. Should you install factory-made precast channels or pour them directly on-site? Pouring on-site generally delivers superior performance for custom or heavy-duty commercial projects.
Feature | Cast-in-Place Systems | Precast Systems |
|---|---|---|
Structural Integrity | Monolithic design with zero weak joints | Relies heavily on sealants that degrade |
Load Capacity | Highly customizable for extreme industrial loads | Limited strictly by factory specifications |
Site Adaptability | Infinite flexibility for curves and complex slopes | Rigid blocks require labor-intensive custom cutting |
Long-Term ROI | Excellent, prevents subgrade washout and sinking | Moderate, highly prone to eventual joint failure |
Precast units arrive at the job site in fixed lengths. Dropping them into a trench might seem faster initially, but these systems carry distinct limitations. Adapting rigid blocks to irregular topography or unexpected underground utility lines turns into a labor-intensive nightmare of custom cutting.
More importantly, precast relies heavily on joints to connect individual segments. Sealants degrade rapidly in environments plagued by heavy traffic and wild temperature swings. Escaping water washes away the surrounding subgrade once a joint leaks. The entire trench assembly eventually sinks and cracks.
Shifting away from factory constraints by utilizing cast-in-place ditch formwork grants crews infinite customization capabilities. Workers continuously adjust the width, depth, and slope along the entire run. This flexibility perfectly matches the unique grading of the site.
The crowning engineering achievement of this method is its monolithic structure. Pouring concrete continuously creates a seamless design devoid of structural joints. This unified beam eliminates leak risks entirely. It provides unmatched durability against the dynamic shear forces exerted by turning semi-trucks.
Selecting the correct molding material profoundly affects labor costs and installation speed. It also dictates the final hydraulic finish of the concrete. The right choice depends heavily on crew size and project scale.
Wood served as the default choice on job sites for decades. It remains relatively inexpensive and readily available. Carpenters easily cut plywood with standard tools to navigate custom angles. However, timber suffers from a notoriously low reusability rate. It quickly warps, swells, and rots when exposed to wet concrete. Building wooden molds is incredibly labor-intensive. A skilled crew must measure, saw, and brace every single section by hand.
Massive infrastructure projects often turn to steel. Heavy-duty metal panels offer incredible durability and a high reusability rate. They shine when pouring mile-long straight runs in vast industrial lots. The downside is the exceptional weight. Installing and stripping these panels mandates cranes or specialized lifting equipment. This drives up operational costs alongside a steep initial purchase price.

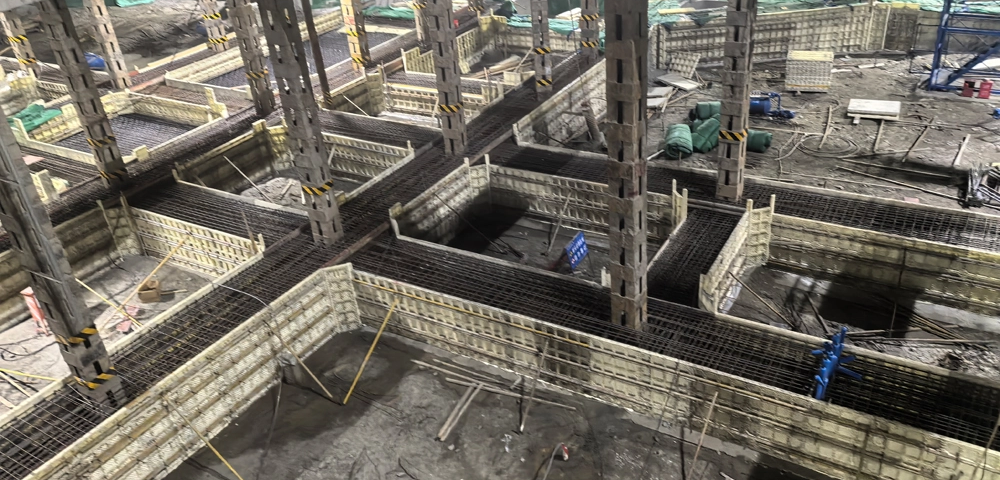

Modern construction increasingly relies on advanced polymers. Systems like 8cm modular plastic concrete formwork offer a game-changing alternative. These lightweight boards allow a small crew to assemble and strip sections entirely by hand. No heavy machinery is required. The 8cm thickness provides exceptional rigidity against hydrostatic pressure, ensuring straight and true pours.
Furthermore, these polymer boards remain impervious to moisture. They never rust or rot. They leave behind a remarkably smooth, glass-like concrete finish that significantly reduces hydraulic friction. This represents a highly efficient modern solution for contractors striving to balance durability, cost, and ease of use.
A sprawling logistics hub experiences vastly different traffic patterns than a local grocery store. Their drainage systems cannot share identical blueprints. The setup must accommodate the specific load and flow demands of the facility.
Shopping centers and office buildings primarily cater to passenger vehicles and foot traffic. The design leans heavily toward pedestrian safety and moderate water management. Molds used in these environments typically shape shallower trenches. A critical detail involves forming precise rebates. These recessed ledges must perfectly accept ADA-compliant, heel-proof grates. This eliminates tripping hazards while efficiently swallowing standard rainstorm runoff.
Manufacturing plants and truck stops demand a much more aggressive approach. These pavements endure the crushing weight of fully loaded 18-wheelers and heavy forklifts. The formwork must be configured to create significantly thicker concrete walls. Deeper channels are required to handle massive volumes of rapid runoff. Precise forming is non-negotiable here. Repetitive commercial tire impacts will quickly shatter the trench edges if the concrete supporting a heavy-duty grate is poured unevenly.
The line between a system that lasts decades and one that crumbles in a few years comes down to installation execution. Strict adherence to engineering protocols ensures unyielding structural stability.
The physical work begins with excavating the trench to exact dimensions. Operators carefully factor in the thickness of the concrete base and walls. Operators thoroughly compact the bottom soil to prevent future settling once dug. A mud mat is then poured. This thin layer of lean concrete creates a clean, perfectly level, and hard foundation. It stops heavy molds from sinking into soft mud.
Workers lower the drainage ditch formwork into the trench once the mud mat cures. Installers meticulously align the panels using string lines and rotary lasers. Verifying the critical gravity-fed slope is mandatory. Wet concrete acts as a dense fluid exerting immense hydrostatic pressure. Crews aggressively secure the setup using steel stakes driven deep into the ground. Robust cross-bracing is coupled with these stakes. This rigid bracing prevents catastrophic blowouts where pressure forces panels apart mid-pour.
Concrete boasts incredible compressive strength but relatively weak tensile strength. Steel rebar is placed inside the cavity to stop the trench from snapping under vehicular stress. Workers suspend this skeleton using plastic chairs. This ensures the steel sits dead center within the future concrete wall. Epoxy-coated rebar is frequently specified to fend off corrosion in snowy regions relying on road salt.
The concrete is poured evenly into the walls and base once everything is braced. Laborers plunge mechanical concrete vibrators into the slurry as the thick mix flows. This critical action forces trapped air bubbles to the surface. It ensures the concrete completely engulfs the rebar and pushes into every tight corner. Skipping this step leads to honeycombing. These weak, porous voids ruin structural integrity. Finally, the surface is finished and left to cure.
Maximizing the lifespan and hydraulic efficiency of a stormwater system requires adopting industry best practices right from the forming stage.
Gravity is the engine of any drainage network. Water stagnates if a trench is poured too flat. This leads to foul odors and debris buildup. Surveying equipment must be utilized to guarantee molds maintain a consistent incline. This is usually engineered between 1 percent and 2 percent. This slight drop ensures water maintains enough velocity to flush silt straight into the main storm sewer.
The interior faces must be generously coated with a high-quality release agent before a single drop of concrete hits the mold. This chemical barrier stops curing concrete from bonding to the panels. The forms pull away cleanly when it is time to strip them. This leaves behind an exceptionally smooth surface. A slick finish minimizes fluid friction and allows water to glide through the trench rapidly.
Effective water management does not rely solely on a central trench. Best practices dictate tying the main network into curb drainage systems. Contractors capture runoff from the extreme edges of the pavement by adapting molds to create seamless junctions between perimeter curbs and the primary channel. This ensures pedestrians will not have to wade through puddles near walkways.
Procuring the right equipment directly impacts your bottom line and project timeline. A reliable manufacturing partner delivers structural consistency and logistical peace of mind.
Evaluate your total linear footage and anticipate future jobs before writing a purchase order. Cheap timber might suffice if you are patching a tiny section of an old lot. However, investing in reusable systems is the only financially sound move if your firm routinely constructs commercial infrastructure. Purchasing durable modular plastics amortizes the initial capital expenditure across dozens of future pours. This drastically slashes ongoing material costs.
Look beyond the lowest price tag when vetting suppliers. A premium manufacturer offers comprehensive technical support. They help your team calculate load pressures and complex bracing requirements. Prioritize companies providing modular, interlocking designs capable of handling complex site geometries. Verify their shipping reliability and request material testing data. Ensure their products can survive the brutal realities of a commercial job site without premature failure.
A beautifully paved parking lot is only as resilient as the drainage system buried beneath it. Even the thickest asphalt will eventually succumb to erosion and cracking without rapid water evacuation. Constructing these vital stormwater networks starts with precise, high-quality molds that dictate the flow and strength of the concrete.
Contractors unlock unparalleled customization and seamless structural integrity by opting for cast-in-place methods over rigid precast alternatives. Pouring on-site ensures the infrastructure perfectly matches the environment. This applies whether navigating tight curves of a retail center or reinforcing a heavy-duty industrial loading zone.
Take a hard look at your current forming methods. It is time to upgrade if you are tired of wrestling with rotting wood or battling heavy steel. Explore the advanced solutions at Wangzu Formworks today. Equip your crew with modern, reusable systems that speed up assembly and deliver flawless results on your next project.
The optimal material depends entirely on the scale of the project and your available labor force. Traditional timber works fine for highly customized repair jobs due to its low initial cost, but its lifespan is limited to a handful of uses. Universal plastic has become the industry standard for medium to large commercial projects. These polymer forms are lightweight, impervious to water, and can be reused dozens of times. Heavy-duty steel offers maximum rigidity against hydrostatic pressure for massive industrial applications involving endless straight runs, though it requires cranes to move.
The stripping process is dictated by the rate of concrete hydration. Vertical panels that do not support the structural weight of the concrete can generally be carefully removed after 24 to 48 hours in standard ambient temperatures. This allows workers to inspect walls and perform surface finishing. Removing the molds does not mean the trench is ready for traffic. The concrete must cure for at least 7 days before it can safely bear heavy loads or support the installation of heavy cast-iron grates without chipping the edges.
Yes, cast-in-place systems are highly adaptable for curved applications. This is a major advantage over rigid precast blocks. Steel panels are inherently difficult to bend, but timber can be adapted onsite by making shallow cuts to allow the wood to flex. Modern modular plastic systems often feature flexible joint inserts or articulated segments. These easily follow the organic curves of landscape islands while maintaining a watertight seal during the pour.
Industrial lots endure extreme dynamic loading from commercial trucks and heavy machinery. Precast systems rely on joints to connect standard-length segments. These joints become structural weak points under continuous heavy traffic. They are prone to differential settlement and cracking. Water infiltrates the subgrade once a joint fails, washing away the base and causing the trench to collapse. Cast-in-place concrete creates a continuous, monolithic structure with zero weak connective joints. This distributes vehicular loads evenly and protects the subgrade from moisture intrusion.
Wet concrete is a dense, viscous fluid that exerts immense upward and outward hydrostatic pressure. This causes a phenomenon known as blowout or floating. The molds must be rigorously anchored before the pour begins to counteract this buoyancy. Standard practice involves driving heavy-duty steel stakes deeply into the compacted sub-base along both sides of the trench. The panels are then secured to these stakes using cross-ties and horizontal walers. Pouring the concrete in controlled, balanced lifts on both sides simultaneously prevents uneven lateral pressure.
Engineers typically design parking lot drainage channels with a longitudinal slope between 0.5 percent and 2 percent. A 1 percent slope is generally considered the sweet spot for commercial applications. This incline provides sufficient water velocity to achieve a self-cleaning effect, flushing silt and small debris toward the catch basin without causing excessive turbulence. Pouring a trench completely flat will inevitably lead to standing water, foul odors, and rapid debris accumulation.
Load classes are determined by the type of traffic the trench will endure, following standards like EN 1433. Class A is strictly for pedestrians. Class C handles light commercial vehicles and standard parking lots. Class E and Class F are mandatory for heavy industrial zones, loading docks, and areas subjected to forklift traffic or solid rubber tires. The concrete walls formed beneath these grates must be engineered proportionally thicker to support the corresponding weight class without cracking.
