| Size: | |
|---|---|

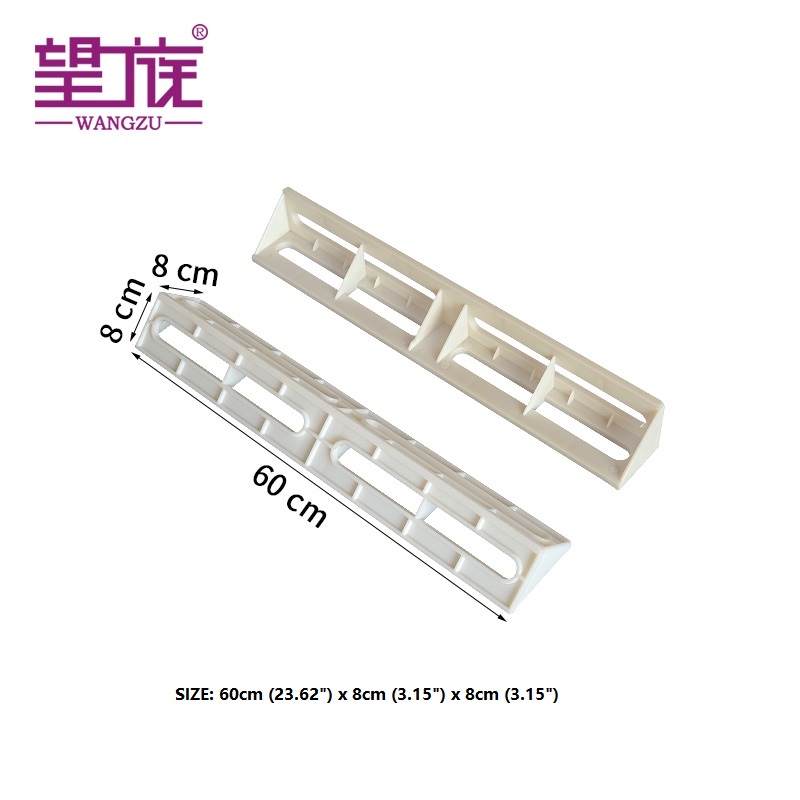

| Adjustment Block: | |
| Material: | |
| Quantity: | |

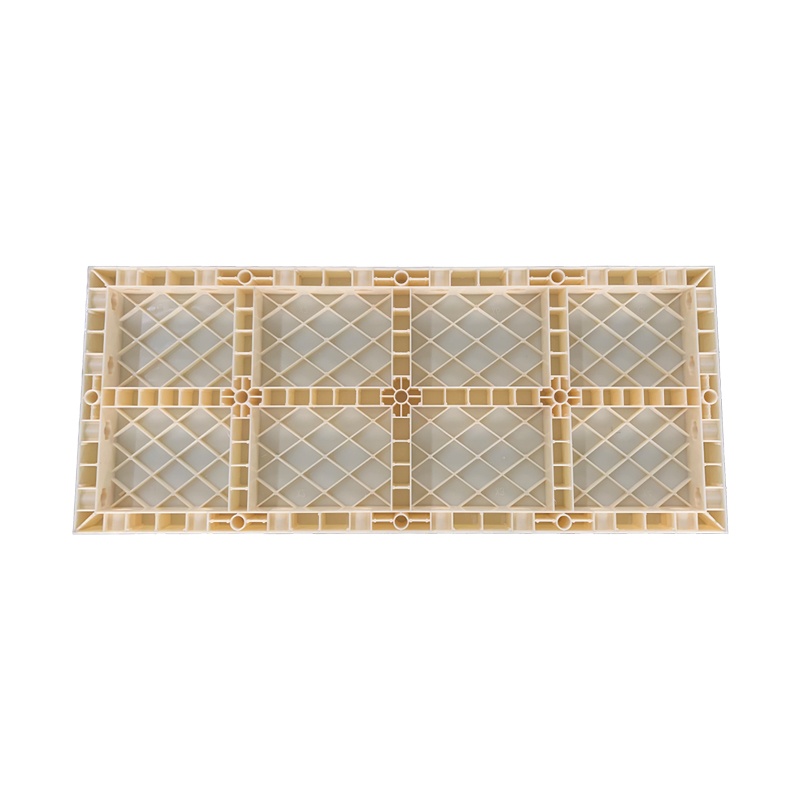

Plastic Formwork
Wangzu
WPF
| Feature | Plastic Formwork | Wood Formwork |
| Material Characteristics | High-strength composite material, uniform texture without defects, waterproof, moisture-proof, corrosion-resistant, non-deformable, stable at high and low temperatures | Solid wood/plywood, uneven texture, easy to crack, strong water absorption, prone to mold and deformation, damaged at extreme temperatures, easy to rot long-term |
| Construction Efficiency | Moderate weight, no large equipment needed, easy splicing without slurry leakage, good forming without secondary polishing, prefabricated special-shaped parts available | Light but needs on-site cutting, joints prone to slurry leakage, poor forming requiring secondary repair, poor special-shaped adaptability, high material waste |
| Modular Splicing & Accessory System | Complete set of accessories (main panels, connecting blocks, adjusting blocks, locking handles), freely splicable to any length/size like building blocks, with flexible adjustment | Requires on-site cutting, no standard accessories, fixed size, difficult to adjust |
| Service Life & Turnover Times | Turnover 50-80 times, service life 5-8 years, repairable after wear, low maintenance cost, reusable without waste | Turnover 8-15 times, service life 1-2 years, easy to damage and irreparable, high loss and waste |
| Cost Comparison | Moderate purchase cost, no loss, low labor and maintenance costs | Low purchase cost, but frequent turnover, high labor and loss costs |
| Technical Parameters | Specification | Description |
| Material | High-strength engineering plastic | Eco-friendly, non-toxic, good toughness, high strength, waterproof, corrosion-resistant, reusable |
| Application | Concrete structures (walls, columns, beams, pipe galleries, infrastructure) | Suitable for various construction & infrastructure projects, freely splicable to fit different structural sizes |

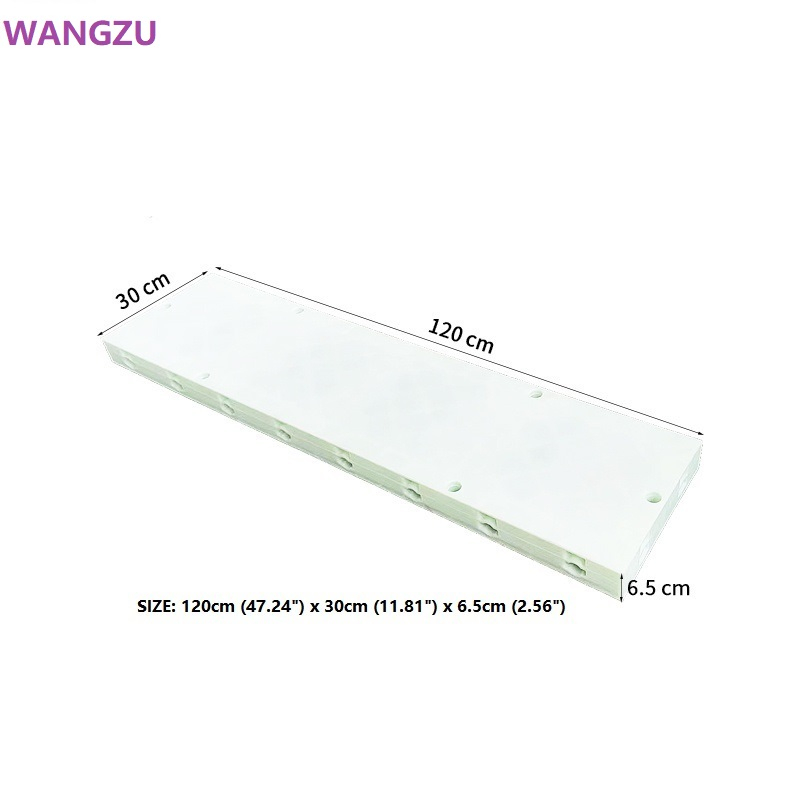

| Regular Panel Size | 120×50cm / 120×60cm/120 x45cm/120x30cm/120x20cm (customizable) | Only partial reference sizes shown; custom lengths, widths and heights available per project drawings |

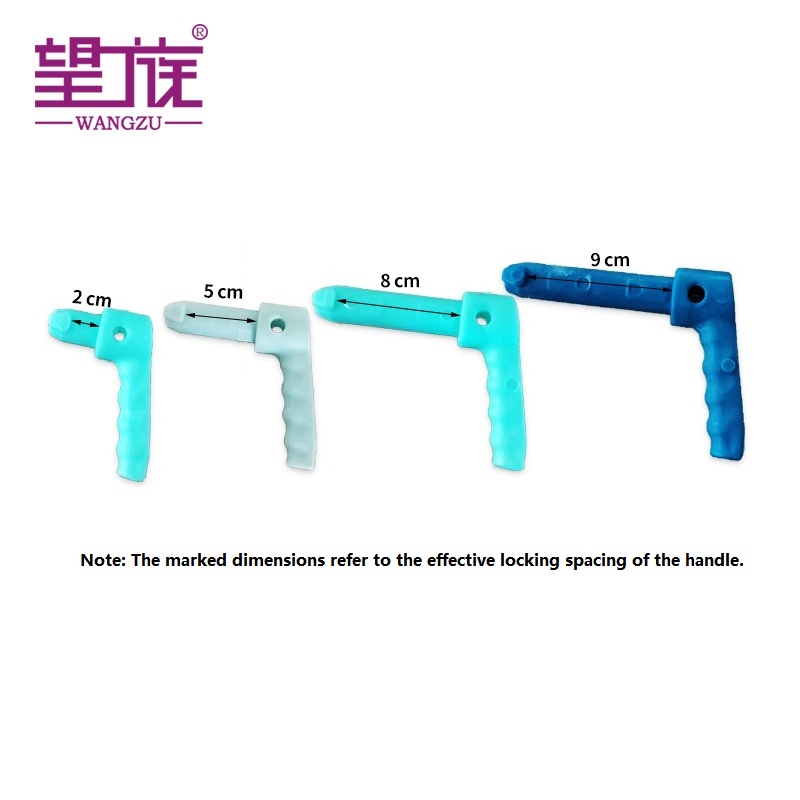

| Accessory System | Main panels, connecting blocks, adjusting blocks, locking handles | Complete set of accessories, freely splicable to any length and size like building blocks |
| Wall Thickness | Customizable (6–8cm regular) | Customizable thickness to adapt to different pouring pressure requirements, ensuring structural stability and non-deformation |
| Weight | According to actual size | Lightweight, easy to carry, install and remove manually |
| Reuse Times | 50–100 times | Reusable with normal maintenance, cost-effective |
| MOQ | Low MOQ for regular panels | Small orders accepted, better price for large quantity |
| Lead Time | 7–10 days for regular, 15–20 days for customized | Stable production, can match project schedule |

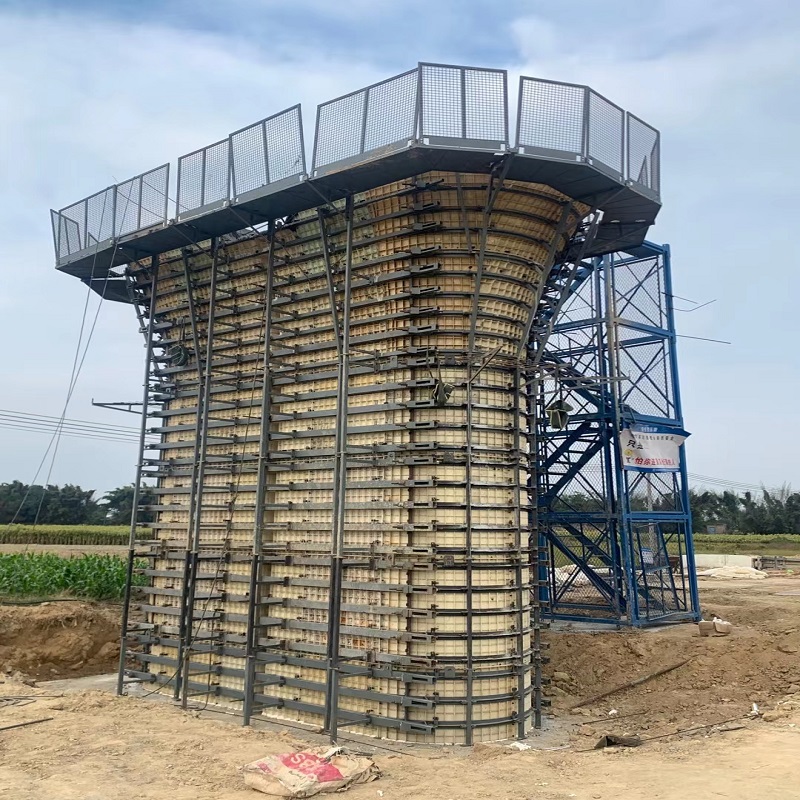

Bridge Pier Column

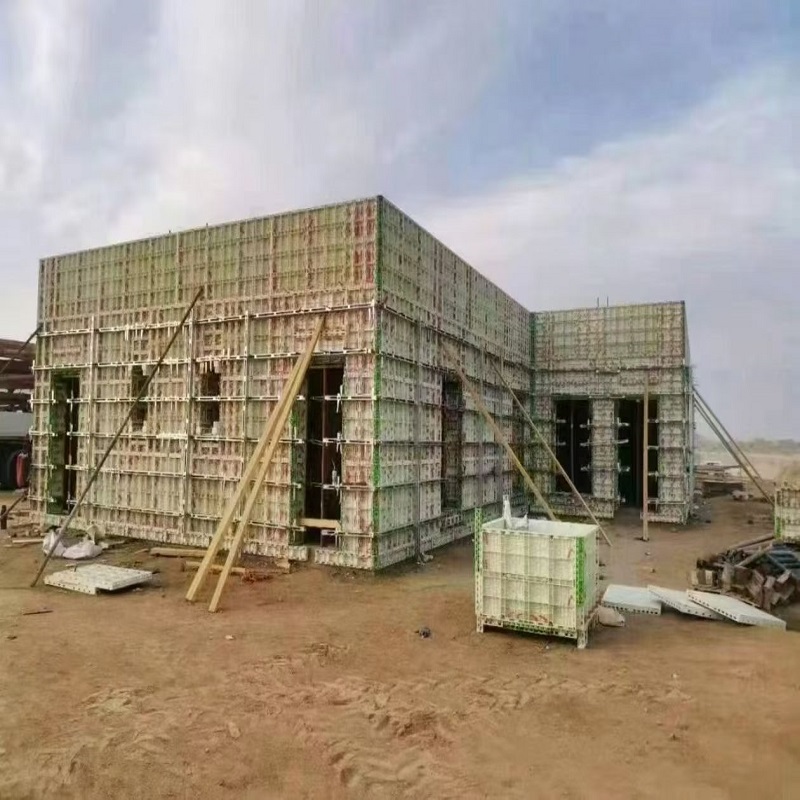

Construction of Small Buildings

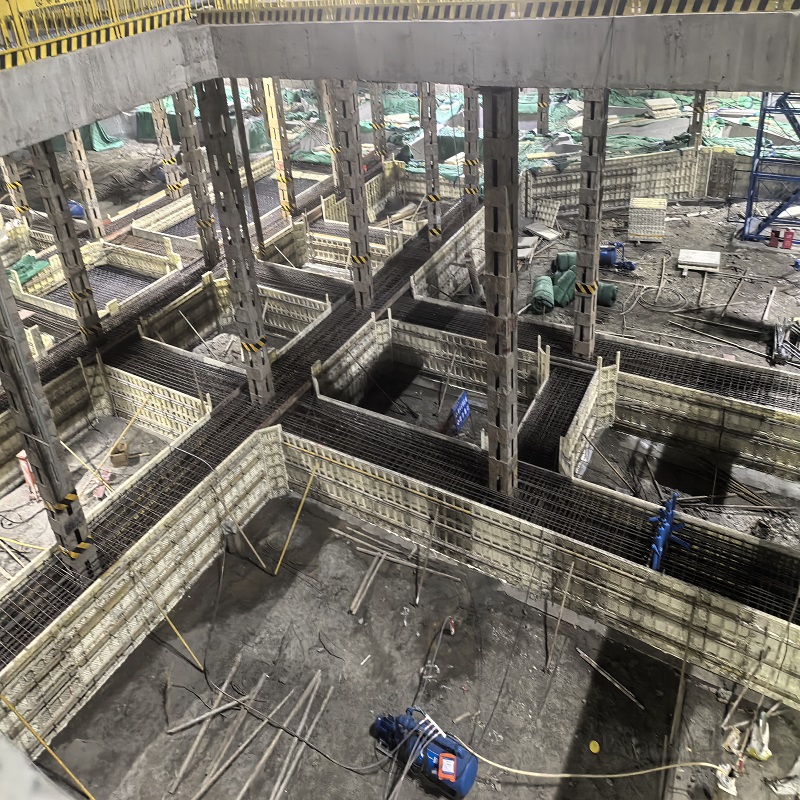

Structural Wall

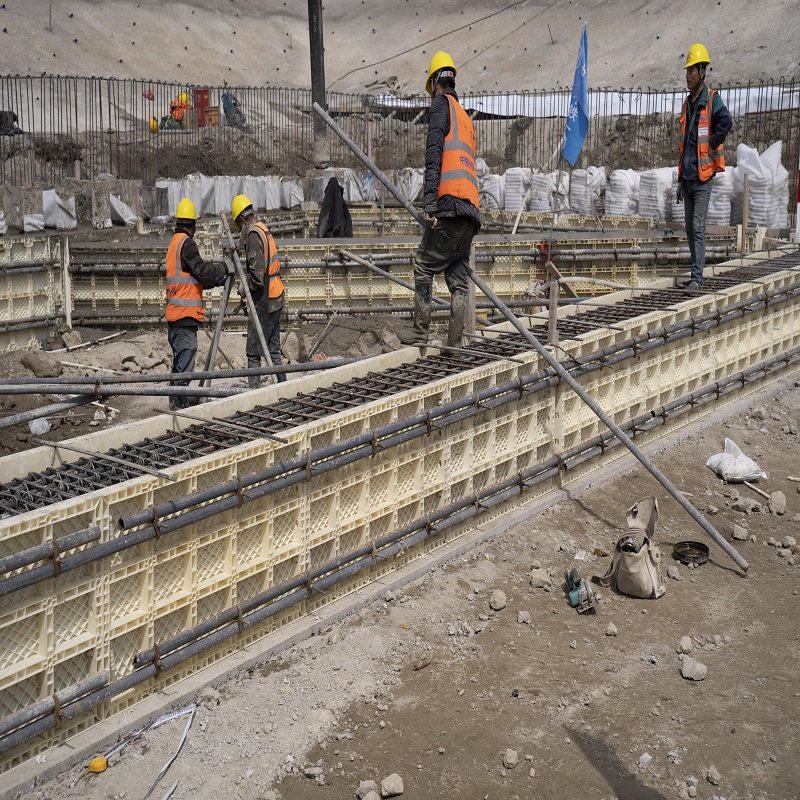

Cable Trench

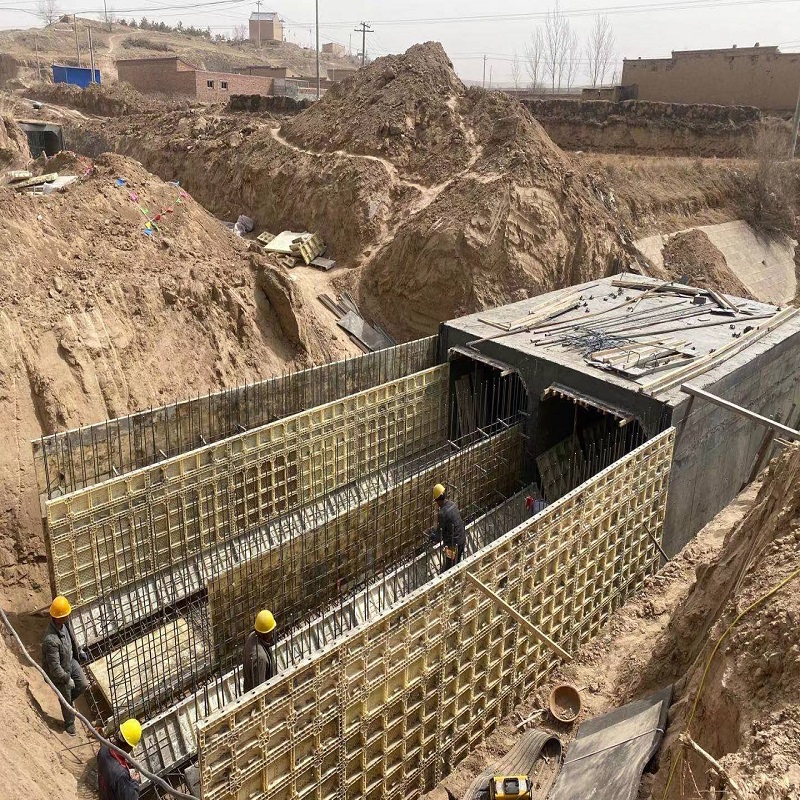

Underground Engineering

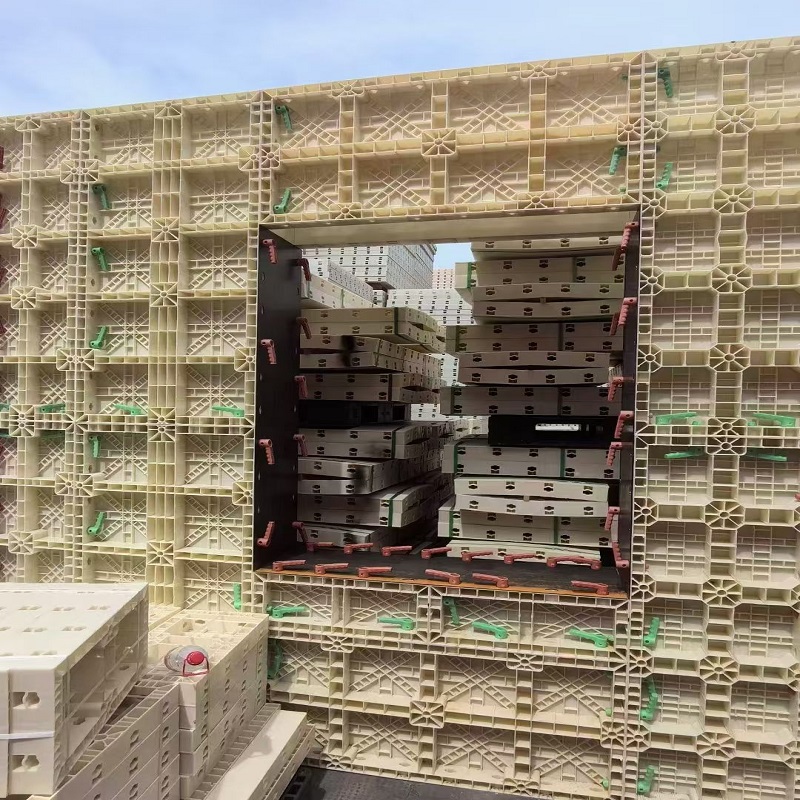

Building Wall
Building Construction: Casting of shear walls, columns, beams, slabs, especially suitable for high-rise residential and commercial complex projects.
Municipal Infrastructure: Urban pipe galleries, underground parking lots, subway tunnels, retaining walls, drainage ditches, adapting to complex special-shaped structures.
Transportation Engineering: Highway guardrails, bridge piers, anti-collision walls, tunnel linings, capable of withstanding high-strength concrete pouring pressure.
Water Conservancy Projects: Dams, canals, flood embankments, reservoirs, waterproof and corrosion-resistant, adapting to humid environments.
Landscape & Garden: Square pavements, landscape retaining walls, flower beds, walkways, with smooth and beautiful finished surfaces, no secondary finishing needed.
Industrial Construction: Factory columns, equipment foundations, warehouse walls, quick to assemble and shorten construction period.
Excellent Forming Quality: Smooth and flat mold surface ensures no honeycomb or pockmarks on concrete, eliminating the need for secondary grinding or plastering, directly achieving fair-faced concrete effect.
Improved Construction Efficiency: Modular block-type splicing design makes installation/dismantling 30% faster than steel formwork; lightweight for manual handling, greatly shortening project duration.
Significant Cost Reduction: Reusable for 50–100 times (far more than wood formwork), with single-use cost only 60% of steel formwork, reducing material waste and labor loss.
Stable & Reliable Structure: High-strength plastic material + locking accessory design ensures strong anti-deformation ability, no slurry leakage or mold expansion, guaranteeing precise structural dimensions.
Outstanding Environmental Benefits: 100% recyclable, no construction waste generated, meeting green construction and sustainable development requirements.
Strong Adaptability: Freely splicable to any size, adapting to straight lines, corners, arcs and other complex structures, with full customization covering all scenario needs.
Q1: Are you a factory or trading company?
A1: We are a factory.
A2: You can send us your project structural drawing or material list for a quotation. Our engineer team will provide you with a professional formwork solution.
Q3: What are your payment terms?
A3: We accept T/T or L/C at sight. 30% deposit to start production, balance to be paid before shipment when goods are ready.
A4: Normally 15–20 days after receiving the deposit. During busy season (August, September, October), it will be 25–30 days.
A5: Our products are usually packed in bulk or on pallets, suitable for container transportation.
A6: Yes, we guarantee product quality. If necessary, you can arrange a third-party company to inspect the goods in our factory.
A7: We can provide comprehensive services including design, production, delivery and after-sales support, together with good product quality and reasonable prices.
A8: Yes, we are looking for agents and distributors worldwide based on win-win cooperation.
