Residential Building Construction
Wangzu
RBC
Product Advantages：
| Feature | Plastic Arch Formwork | Wood Formwork | Steel Formwork |
| Material | High-strength engineering PP or ABS composite | Solid wood, easy to crack/rot, high water absorption | Heavy steel, prone to rust, poor corrosion resistance |
| Construction | Lightweight for manual handling, no heavy machinery required; interlocking design for zero slurry leakage, fast modular assembly for all residential components | Needs on-site cutting and nailing, joints leak easily, high damage rate, labor-intensive | Extremely heavy, requires lifting equipment, complex bracing, low construction efficiency |
| Reusability | ≥100 times under normal construction, consistent performance across cycles | 5-8 times, prone to damage and deformation after use | 30-50 times, high risk of deformation and fatigue damage |
| Surface Finish | Smooth, high-precision forming, no secondary plastering required | Rough, uneven surface, mandatory plastering and grinding | Smooth but prone to rust stains, requires surface treatment |
| Water Resistance | Excellent, zero water absorption, no swelling or rotting | Poor, high water absorption, easy to rot and deform | Good but prone to corrosion, requires regular anti-rust treatment |
Maintenance Cost | Almost zero, no repair or anti-rust treatment needed | High, frequent replacement cost | High, regular anti-rust and straightening cost |
| Overall Cost Performance | Excellent, lowest total cost of ownership (TCO) | Poor, high long-term material and labor cost | Medium, high upfront and maintenance cost |
| Supporting Services | Complete set of matching accessories + professional technical support | No supporting accessories or technical services | Simple accessories, no professional technical support |
| Modularity | Full accessories, freely splicable, highly adaptable to complex structures | Fixed size, no standard modular system, poor adaptability | Standard panels, heavy, limited splicing flexibility |
| Eco-Friendly | 100% recyclable, no construction waste | 100% recyclable, no construction waste | Recyclable but high production energy cost |
| Technical Parameters | Specification | Description |
| Material | High-strength engineering PP or ABS | Premium engineering plastic with enhanced flexural strength, impact resistance and dimensional stability |
| Application | Residential building construction | Mainly used for shear walls, columns, floor slabs, beams and various residential concrete structures |
| Standard Modular Size | Standard modular series available | Pictures show only part of the sizes; please contact us for details, full customization is available |
| Load Bearing Capacity | Excellent load-bearing performance | High structural rigidity, strong side pressure resistance, no bulging or deformation during concrete pouring |
| Surface Type | Smooth non-stick surface + internal grid reinforcement | Smooth forming surface with internal rib structure for enhanced rigidity and anti-bulging performance |
| Temperature Resistance | -20℃ to 60℃ | Wide operating temperature range, suitable for cold, temperate and hot climate construction |
| Splicing Accuracy | High splicing precision | Tight splicing to prevent slurry leakage, ensure structural accuracy and reduce rework |
| Corrosion Resistance | Excellent, chemical and corrosion resistant | Suitable for humid, coastal and corrosive construction environments |
| Accessory System | Complete full set of accessories | We provide adjusting blocks, main panels, connecting blocks, handles, matching blocks and other full system accessories |
| MOQ | 100㎡, trial order negotiable | Flexible MOQ policy to support small-scale trial projects and large-scale bulk orders |
| Lead Time | 7-15 days for customized | Stable production, can match project schedule |

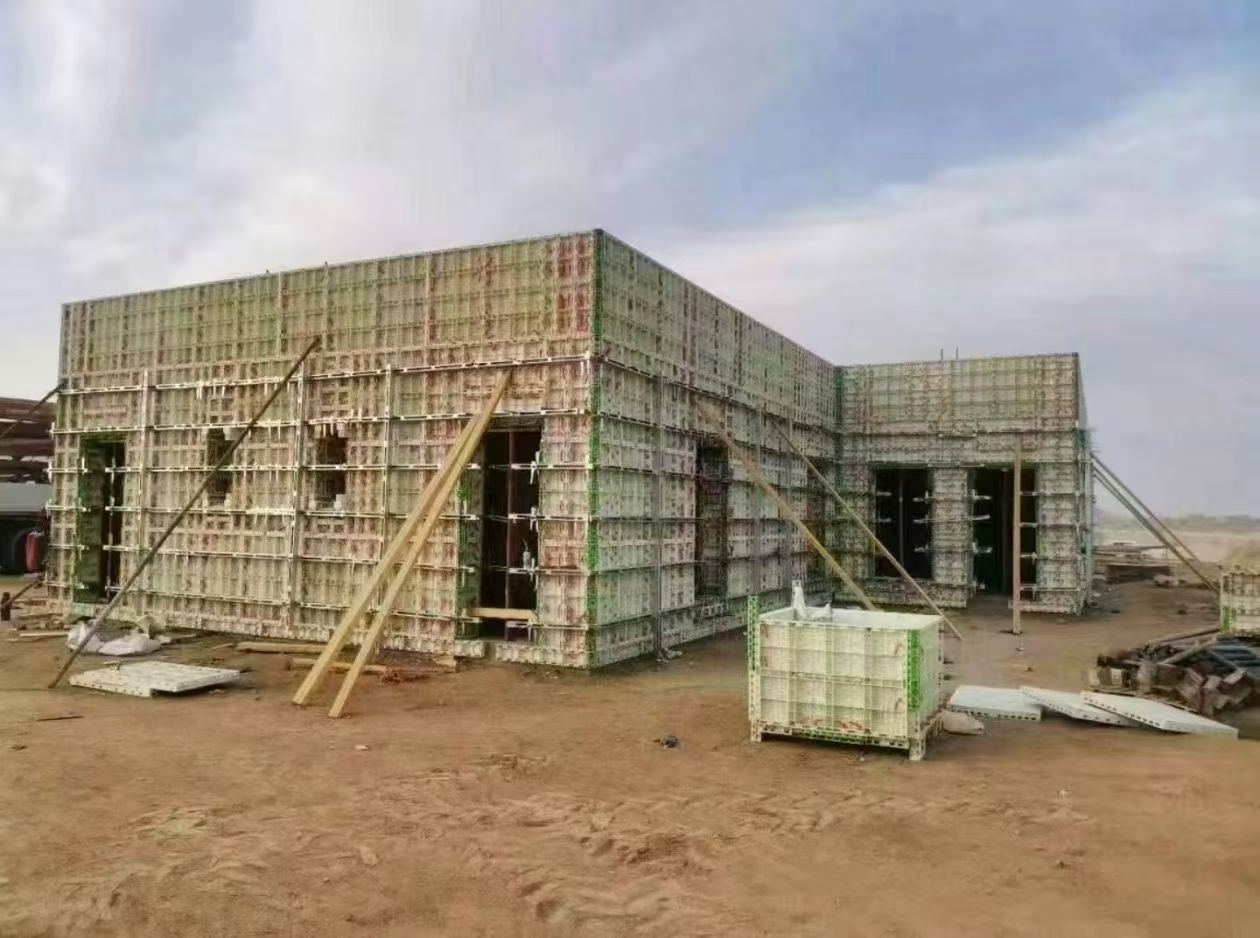

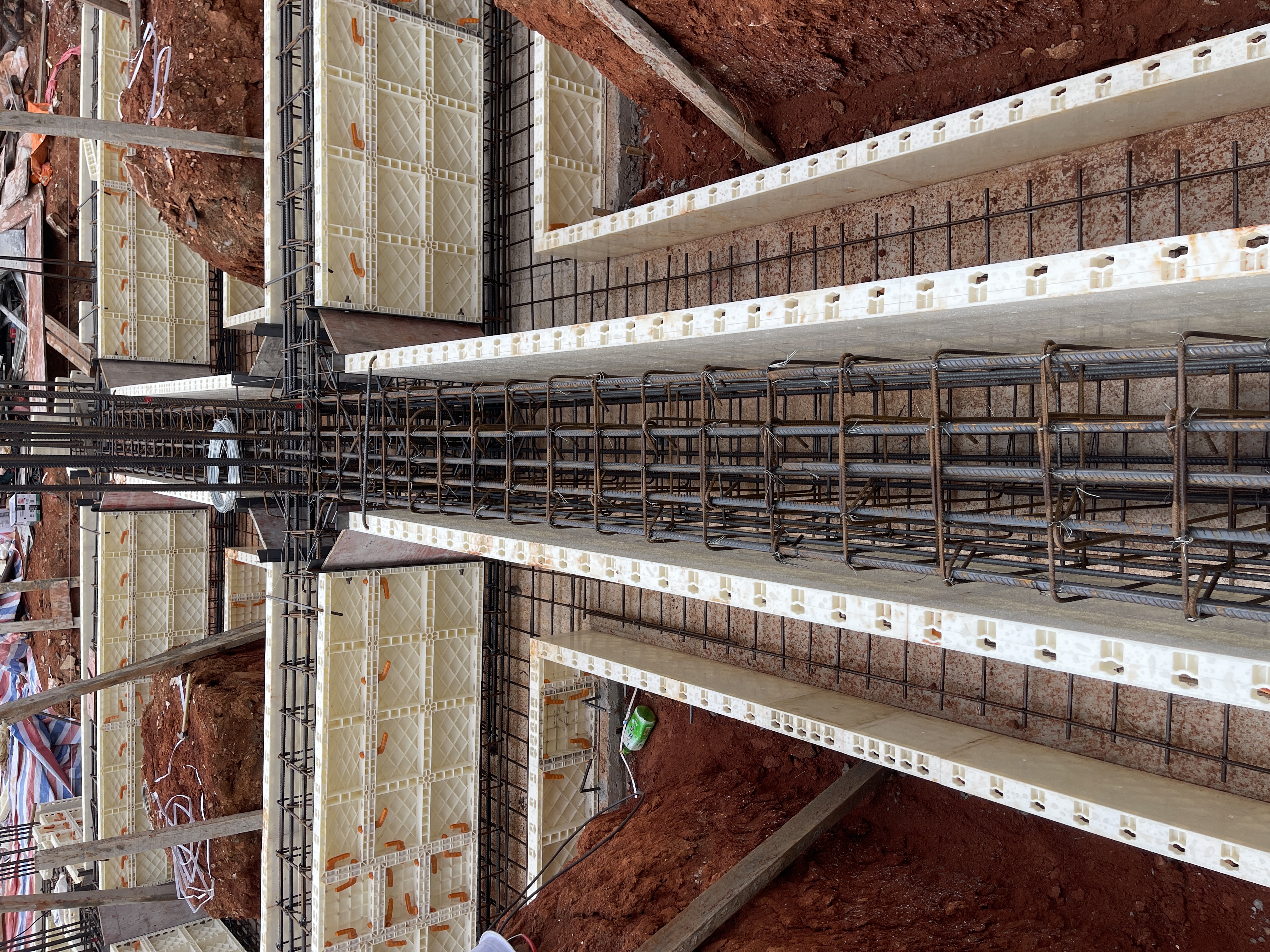

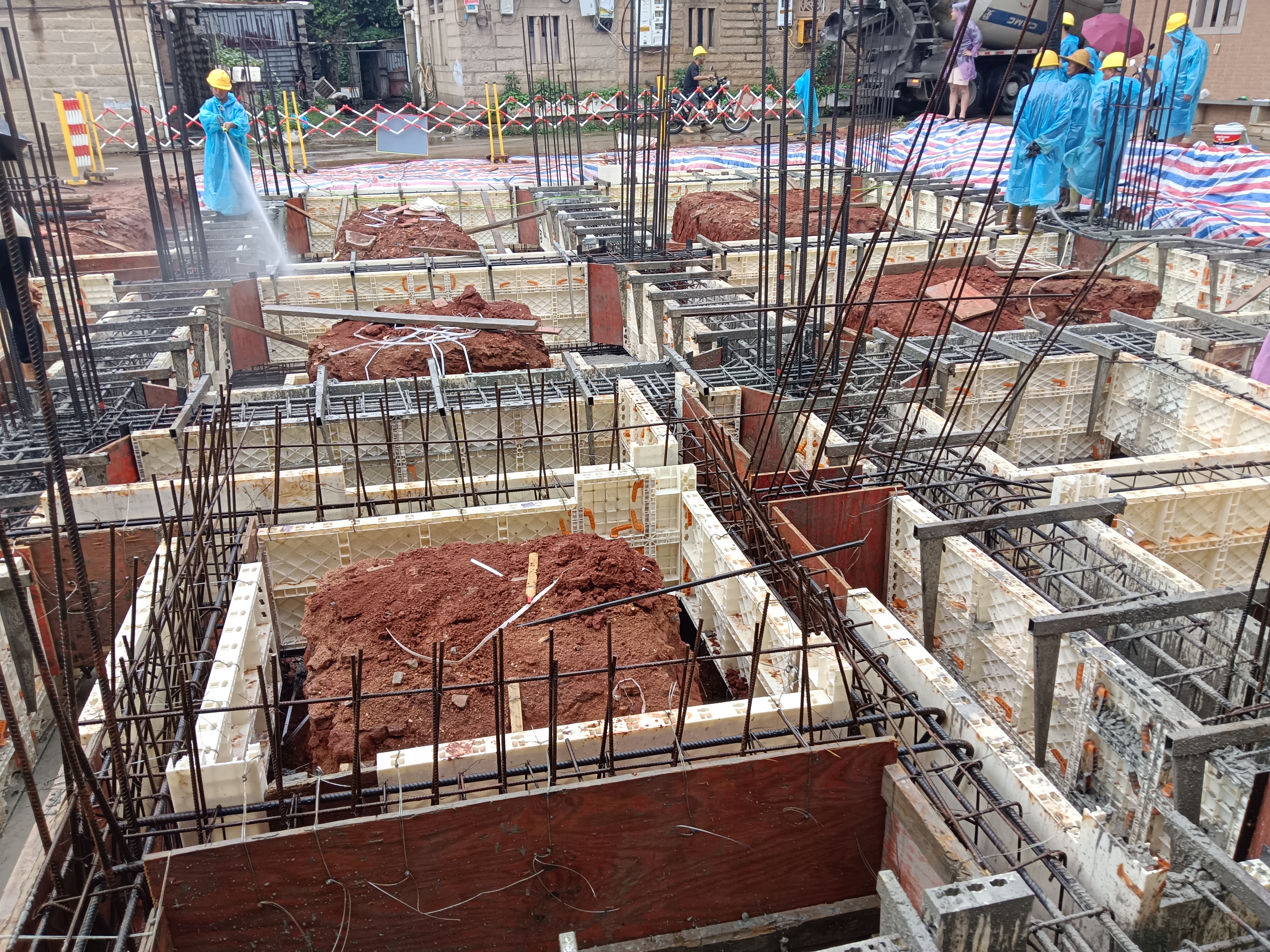

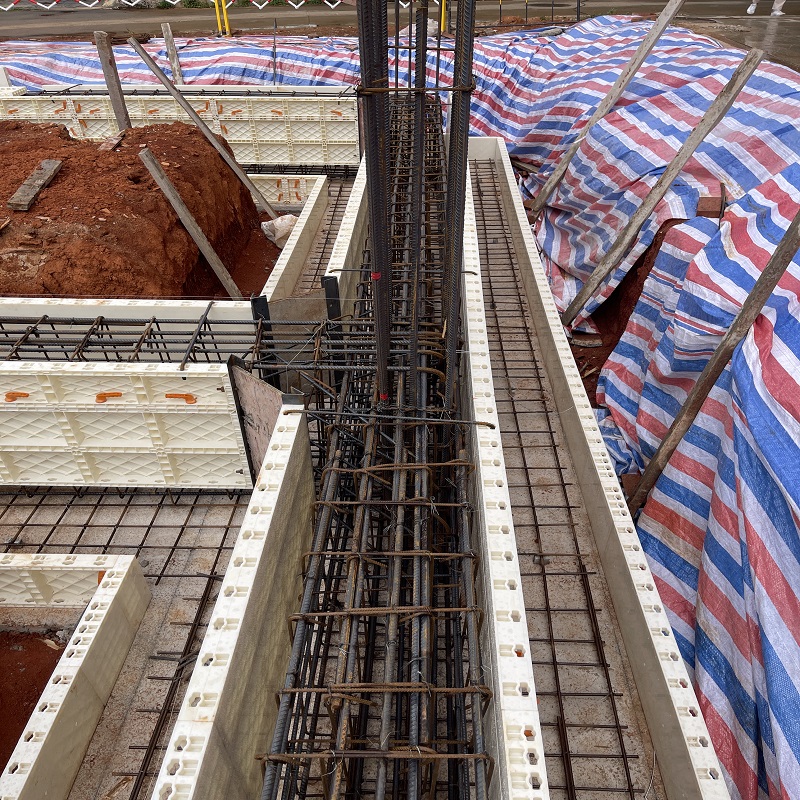

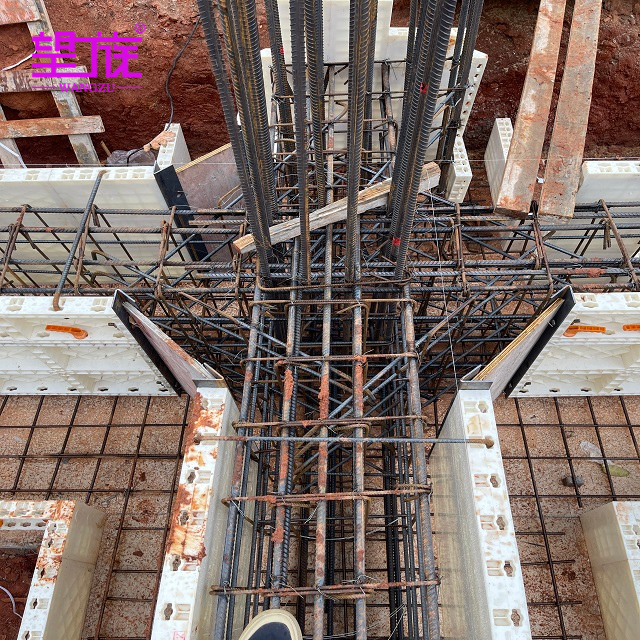

Building Construction Cases
Building Construction Cases
Building Construction Cases

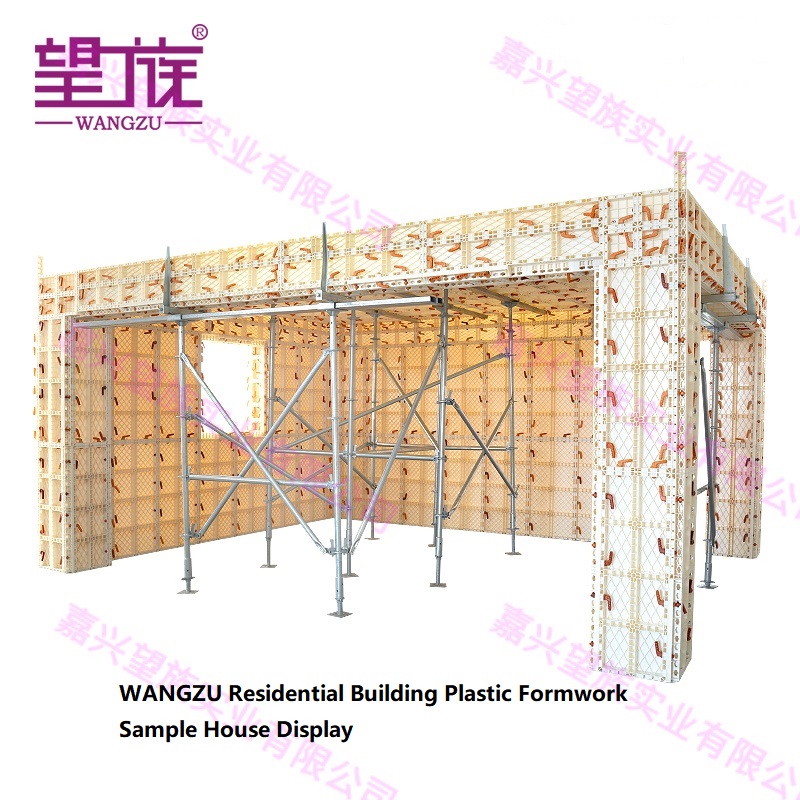

Residential Building Construction (villas, mid-rise/high-rise apartments, affordable housing)
Commercial & Public Building Construction (offices, schools, hospitals, shopping malls)
Industrial Building Construction (workshops, warehouses, factories)

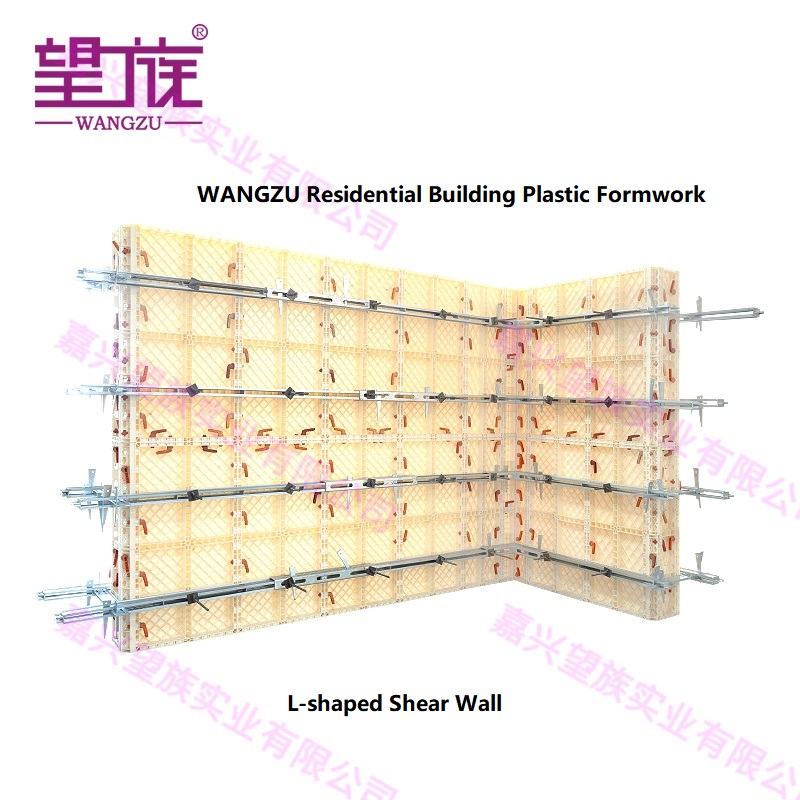

Shear Wall & Load-Bearing Wall Forming

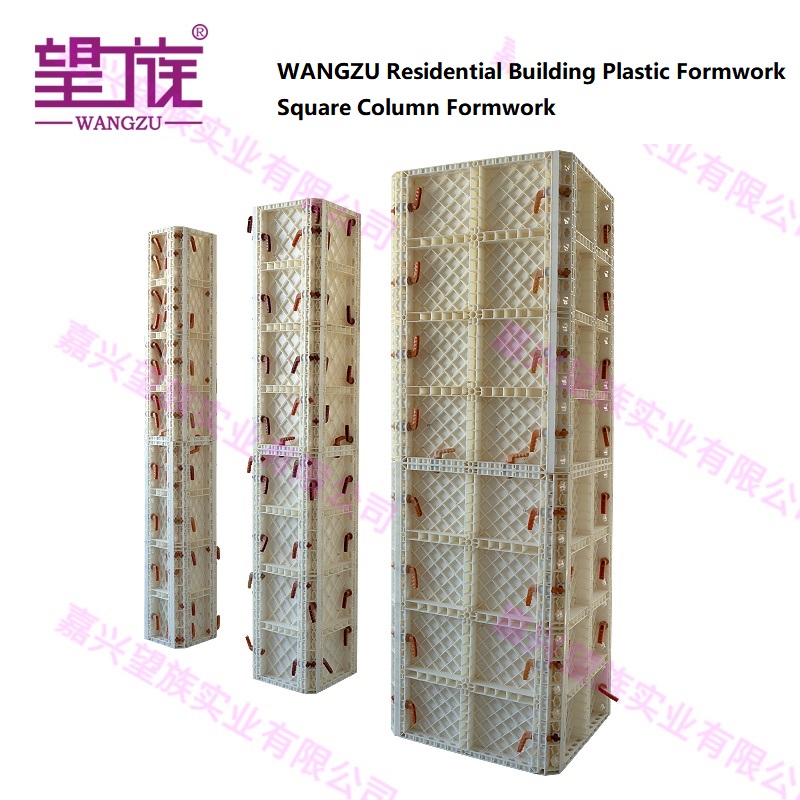

Column & Pier Forming (square, rectangular and special-shaped columns)
Floor Slab & Beam Concrete Pouring
Building Internal & External Corner Construction
Foundation, Basement & Underground Structure Construction
Water Conservancy & Hydraulic Engineering (dams, channels, pool structures)
Small & Medium Infrastructure Projects (culverts, retaining walls, road barriers)
Various Cast-in-Place Concrete Structural Projects
Reduces on-site labor input by 40-50% compared with traditional wood formwork, driven by lightweight manual handling and fast modular assembly
Cuts overall project material cost by 30-50% compared with steel formwork, thanks to high reusability and low maintenance requirements
Improves construction efficiency by 35-40% vs wood/steel formwork, shortening project duration and accelerating capital turnover
Reduces concrete structure rework rate by over 60%, due to high splicing precision, zero bulging and stable forming quality
Extends service life by 10-20 times compared with wood formwork, with ≥100 reuse cycles under normal construction
Eliminates secondary plastering work due to smooth forming surface, reducing post-pouring labor and material cost
Lowers comprehensive construction cost by 20-30% in the full project cycle, delivering significant economic benefits
Ensures consistent structural accuracy and safety, meeting global residential construction quality standards
Professional technical support and complete matching accessories reduce construction difficulty and ensure construction efficiency
Q1: Are you a factory or trading company?
A1: We are a factory.
A2: You can send us your project structural drawing or material list for a quotation. Our engineer team will provide you with a professional formwork solution.
Q3: What are your payment terms?
A3: We accept T/T or L/C at sight. 30% deposit to start production, balance to be paid before shipment when goods are ready.
A4: Normally 15–20 days after receiving the deposit. During busy season (August, September, October), it will be 25–30 days.
A5: Our products are usually packed in bulk or on pallets, suitable for container transportation.
A6: Yes, we guarantee product quality. If necessary, you can arrange a third-party company to inspect the goods in our factory.
A7: We can provide comprehensive services including design, production, delivery and after-sales support, together with good product quality and reasonable prices.
A8: Yes, we are looking for agents and distributors worldwide based on win-win cooperation.
