26*6*6
Wangzu

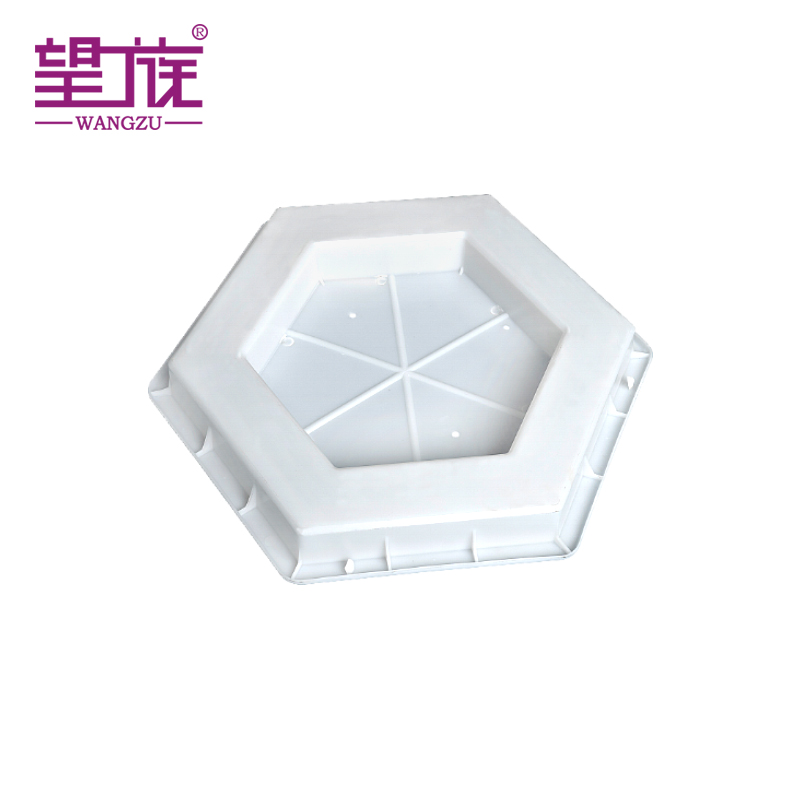

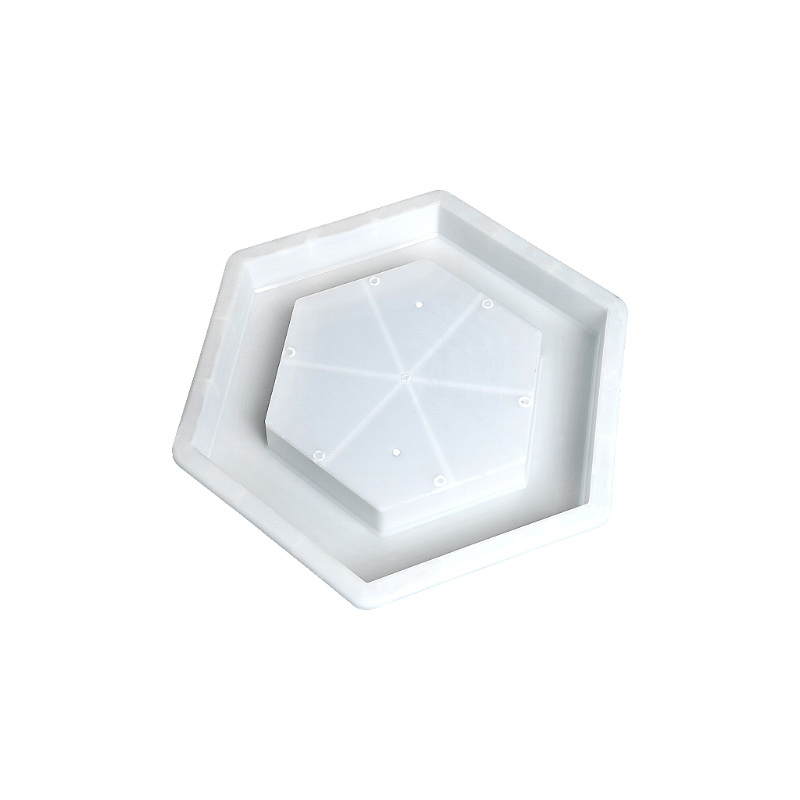

The demand for resilient, permeable surfacing solutions continues to grow across commercial and municipal sectors. The hollow hexagonal plastic floor tile mold is engineered to meet these exacting requirements, producing interlocking grids that excel in water drainage and load distribution. Designed for continuous, heavy-duty injection molding cycles, this tooling solution empowers manufacturers to output dimensionally accurate tiles that resist deformation under significant weight. By focusing on structural stability and consistent material flow, the mold ensures that every produced tile maintains a uniform thickness and a solid geometric profile, essential for large-scale paving projects where precision is non-negotiable.
The foundation of any reliable injection molding operation lies in the metallurgical properties of the tooling. This mold is constructed from premium-grade hardened steel, utilizing industry-standard materials such as P20 or 718, depending on specific production volume requirements. Through specialized thermal treatment processes, the core and cavity plates achieve exceptional surface hardness and wear resistance. This rigorous hardening process minimizes the risk of dimensional drift over prolonged production runs, guaranteeing an extended operational lifespan. Manufacturers benefit from a significantly reduced cost per part, as the tooling withstands the intense pressures of continuous injection cycles without degrading. The resulting floor tiles exhibit a dense, rigid structure with a satisfyingly solid tactile feel, capable of absorbing impact and resisting environmental stress cracking over years of outdoor exposure.
Creating a hollow hexagonal geometry presents unique challenges in plastic flow and ejection. To address this, the mold incorporates a highly optimized ejection system paired with meticulously calculated draft angles. This configuration ensures that the intricate hexagonal ribs release smoothly from the cavity without sticking, dragging, or warping the still-warm polymer. The precision of the demolding process guarantees that the finished tiles feature perfectly smooth, burr-free edges. When installers handle the final product, the absence of sharp flash ensures safe handling and allows the interlocking mechanisms to snap together with an audible, secure click. This level of dimensional consistency prevents assembly issues on the job site, ensuring a perfectly flat and stable surface across expansive installations.
Efficiency in injection molding is directly tied to thermal management. This mold features a scientifically mapped internal cooling water channel system designed to extract heat rapidly and evenly from the injected polymer.
Rapid Heat Dissipation: By surrounding the thickest sections of the hexagonal ribs with optimized cooling circuits, the tooling drastically reduces the required cooling phase of the cycle.
Increased Daily Yield: This rapid heat extraction shortens the overall cycle time, allowing facilities to increase their daily production output significantly.
Defect Prevention: Uniform cooling prevents internal stresses and sink marks on the tile's surface, ensuring visual consistency and structural integrity.
Energy Optimization: The accelerated cycle not only boosts output but also lowers the energy consumption associated with each batch, optimizing manufacturing expenditure.
Recognizing that different projects require specific load-bearing capacities and aesthetic finishes, this tooling solution offers extensive customization capabilities.
Customization Parameter | Description |
|---|---|
Dimensional Adjustments | Tailoring the overall size, wall thickness, and geometry based on specific technical drawings. |
Reinforcement Ribs | Modifying internal grid structures to meet specific compressive load requirements. |
Surface Textures | Integrating customized anti-slip patterns that provide a distinct, rough grip underfoot. |

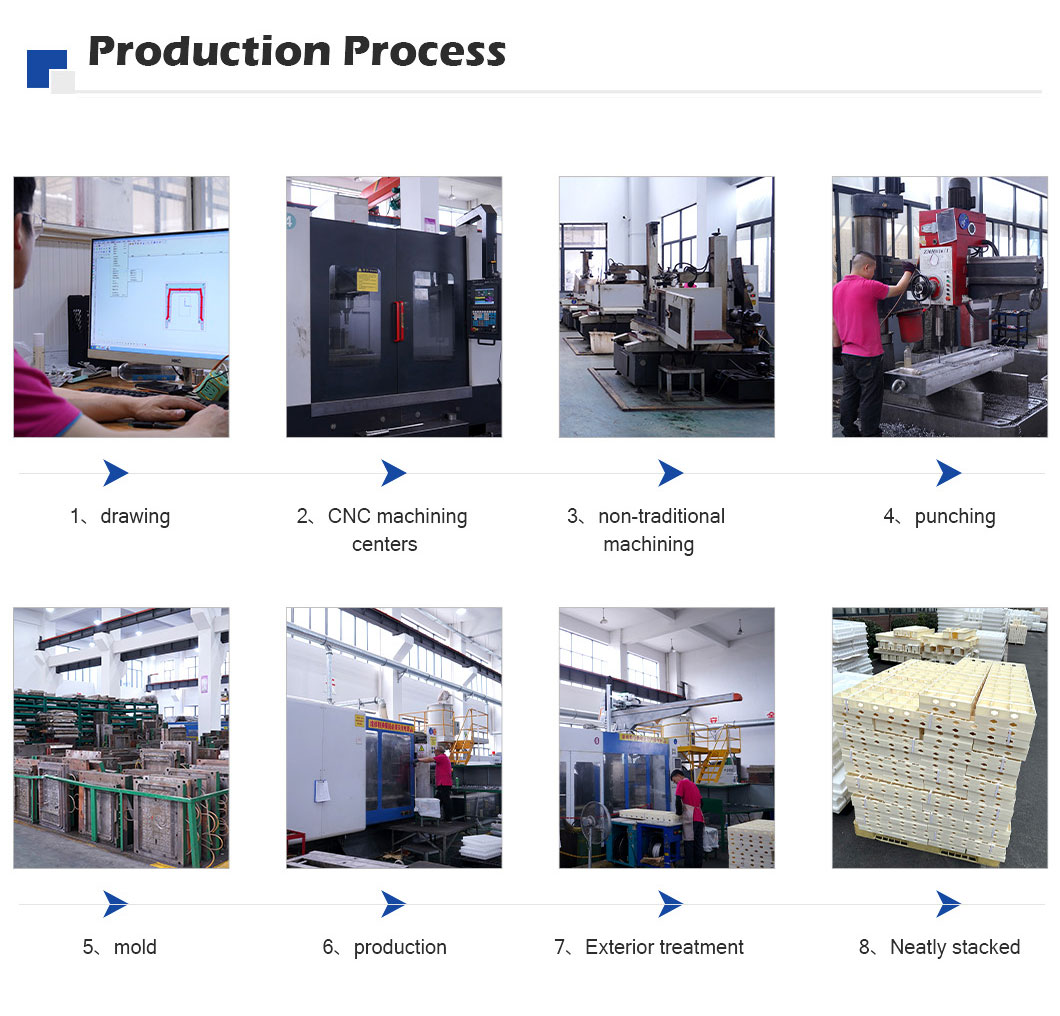

To guarantee exact adherence to these specifications, the manufacturing process relies on advanced CNC machining centers and rigorous Coordinate Measuring Machine (CMM) inspections. Tolerances are strictly controlled down to the micro-level. Prior to dispatch, comprehensive trial runs are conducted, with detailed video documentation and first-article samples provided to verify that the mold performs exactly as specified.
The interlocking tiles produced by this mold are tailored for environments that demand both structural support and effective fluid drainage. In commercial car wash facilities, the hollow hexagonal structure allows water, soap, and debris to pass through instantly, keeping the walking surface dry and safe. For urban infrastructure, these grids serve as excellent parking lot grass pavers, protecting root systems from vehicle compaction while supporting the weight of heavy automobiles. They are equally suited for garden walkways, municipal landscaping projects, and industrial flooring where fluid runoff is a priority. The precise geometry of the molded tiles ensures they can bear substantial compressive loads, making them a versatile solution for numerous demanding applications.
Maintaining optimal performance throughout the lifecycle of the tooling requires proper care and expert support.
Comprehensive Maintenance Documentation: Each mold is accompanied by a detailed manual outlining lubrication schedules, cleaning protocols, and storage recommendations to prevent oxidation.
Essential Spares Included: To minimize potential downtime, critical wear-and-tear components, such as ejector pins and O-rings, are included with the initial shipment.
Remote Technical Guidance: Continuous remote assistance is available to help operators optimize injection parameters, troubleshoot flow issues, or adjust temperature settings, ensuring a steady output of premium floor tiles.
